Product Description

pneumatic rock drill machine /rock use down-hole drilling machine
/deep hole water well drilling rig
Crawler Hydraulic Quarry Blast Hole Dth Drilling Rig For Sale description

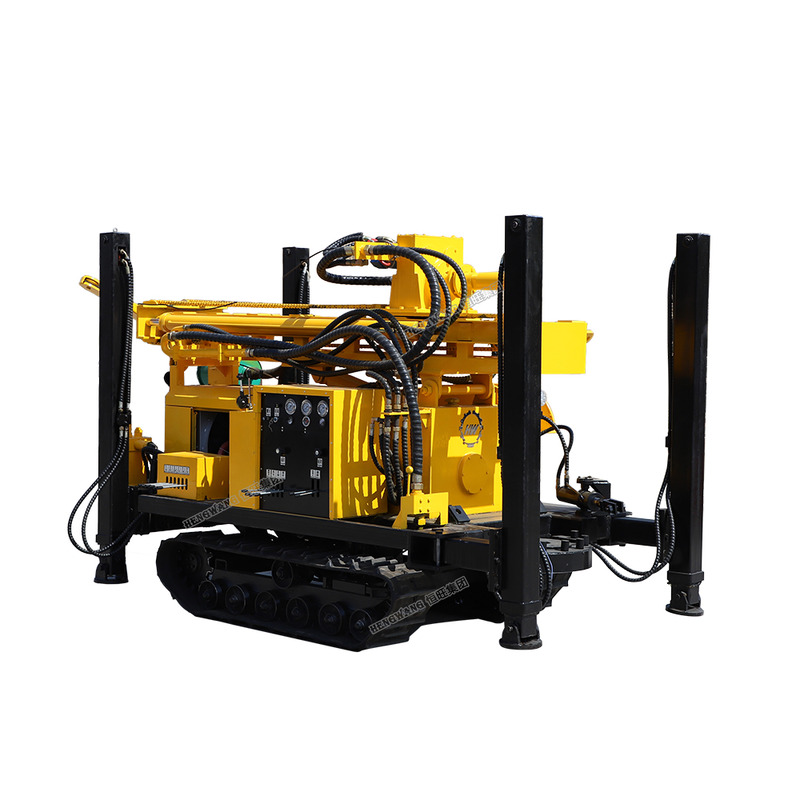

pneumatic dth drilling rig mainly drilling rock,connect with air compressor . it has fast drilling speed . pneumatic dth drilling rig can drill 20-30m per hour . high drilling effective .the engine it is Yuchai 85kw ,more powerful . pneumatic drilling rig it has 4 high hydraulic leg which can lifting 1.6m height can easy loading on the truck .Pneumatic drilling rig has steel crawler and rubber crawler . steel crawler mainly used in mountain area , rubber crawler mainly can protect the ground, not suitable mountain area use.
Pneumatic drilling rig mast can customized max.height is 6m .normally the mast height is 3m .

Specification

Model	HQZ-180L
Overall weight （T )	3.5
Dimension (mm )	340015002400
Drilling diameter (mm )	130-245
Drilling depth (m)	180
One-time advance length of the drill(mm)	3000
Traveling speed （km/h )	2.5
Climbing ability (max )	25°
Minimum Ground Clearance (mm）	250
Working Air Pressure (mpa )	1.45 - 2.5
Air consumption(m³/min)	15 - 27
Main machine power （kw)	Yunnei 42Kw
Rotary Speed (rpm)	38 - 80
Rotary torque (Nm)	4000-5000

Detail Images

pneumatic dth water well drilling adopts domestic famous 42kw high-power diesel engine, which features strong power and ability to meet the working requirement of various operation environment. Access to the manufacturer's joint warranty and after-sales guarantee is offered.

Double-pump hydraulic double power head, ensures greater torque and faster drilling speed.It is capable of walking on different kinds of road sand easy to move. The stainless steel track is reinforced and the climbing ability is stronger.

The four outrigger cylinders can be respectively controlled, which facilitates the adjustment of the vertical angle between the well hole and the ground when drilling, and at the same time ensure the stability of the drilling rig when it is working, and they can lift up to 1.5 meters.

Application

air dth water borehole drilling rig mainly used in farms ,home use ,Irrigation, construction and commercial use .pneumatic drilling rig can drilling rock ,soil ,have fast drilling speed .

Related Product

Packing & Delivery

dth air water borehole drilling machine can loading in 1X20GP container .

if also have air compressor , it need loading in 1X40HQ container .

Company Profile

Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , drilling machine and construction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well drilling rig machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.

Certifications

We company have ISO ,SGS ,TUV,BV ,etc certificates . and our pneumatic dth air borehole water well drilling rig have CE certificates .
